SegsVsArc

Introduce


  • Don't thinks SegsVsArc is a tool ,it is a presetting that  used to control how many points (or vertices) make an Arc.
  • The tools affacted by SegsVsArc  include:

  • RoundVts(Rad),RoundVts(TT),RoundVts(3P),

  • SubDivSpls,

  • RoadNetwork

  • PiecePoly


  • In 3ds max , the steps of a spline(6 by default)control the  number of divisions on  an arc (or a curve segment).No matter how big or how small an arc is,the number of divisions is always the same,this will result in that small arcs have  too many segments(or vertices)  while the segment number for big arcs is  insufficient
  • In fact,what we really need is that the number of divisions changes   over the radius.

How To

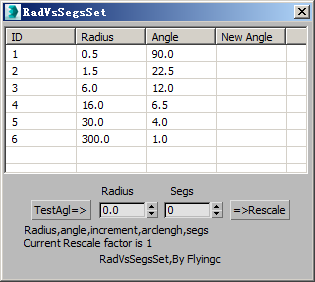

For the arcs with the same degree,the bigger the radius ,the more vertices are needed.So I desinged a table to describe the mapping relation:Radius versus degree that each segment of Arc occupy,thus the vertices number on an Arc will be gotten via interpolation.
If you need more vertices,you can follow steps below:

  1. import an arc(select an segment of a spline or continous vertices which can form an arc) to get the radius

  2. then enter the desired numbers on the arc

  3. press “=>Rescale” .

Then the change will be applied to Auto RoundVerts tools and Piece poly.

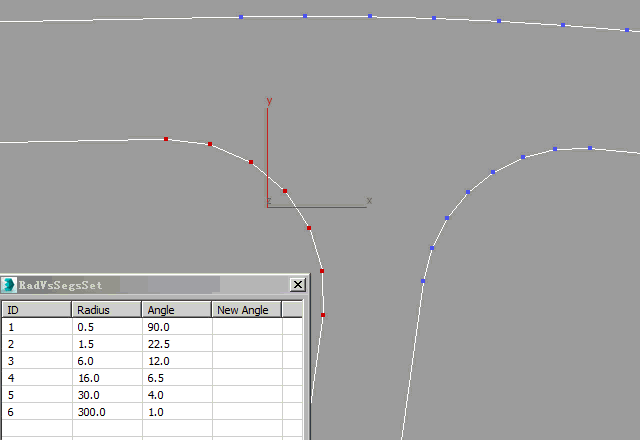

The video below show the operating.(Note that ,I use RoundVts(TT) with a hot key to show the difference. )



Control vertex number on an arc


Parameters

Tips

Note That
