PiecePoly

Introduce

Splines interlaced with each other can form many closed areas,the process extracting these areas as poly faces is called PiecePoly.
With PiecePoly,you no longer need to draw closed splines again and again just for getting polygon faces seamlessly pieced together.

PiecePoly

How To

  1. Select one or more editable spline or line

  2. Make sure Fuse distance and Extend Amount are reasonable value

  3. Press "Piece" button

Parameters

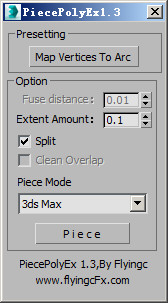

PiecePolyEx1


  1. Map Vertices To Arc:Change the mapping from arc segments to radius,plese refer to "Manager/SegsVsArc"

  2. Fuse distance:Specify a distance so that vertices within it can be fused together.

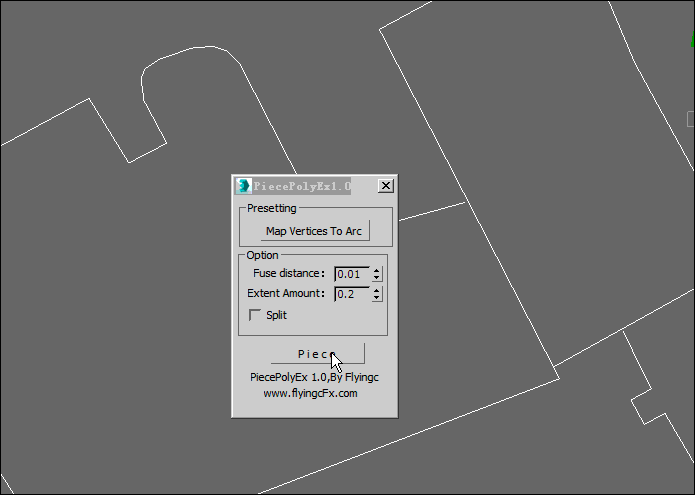

  3. Extend Amount:Extend the end of spline so that form closed area as soon as possible.

    PieceExtend

  4. Split:Split piecing result to single elements.

  5. Piece Mode: There are two mode--"3dsmax" and "lifu", "3dmax" mode uses a 3dsmax itself function, the result can get a good result even though with may duplicated lines. "lifu" is as an alternative offer.

Tips

Note That
