PCloudToMesh

Introduce

Creating a Terrain Mesh in 3ds Max with AutoCAD Elevation Points stored in a file with AutoLisp. This tutorial will show you how to bridge the gap between AutoCAD's precise survey data and 3ds Max's powerful 3D modeling capabilities to create stunningly realistic landscapes

How To

  1. Prepare a  text file that stores 3D Points

  2. In this file ,each point coordinate should be stored in a single line, and each component (x,y,z)is separated by "," or a blank. The typical format such as "1，419.05,-45.945,288.424",first value is index,followed by x,y and z coordinate.



  3. PCloudToMesh
    For easily getting such a text file,TerrainAxe also provide a autolisp program,with whichyou can export selected elevation points into a text file.


Parameters

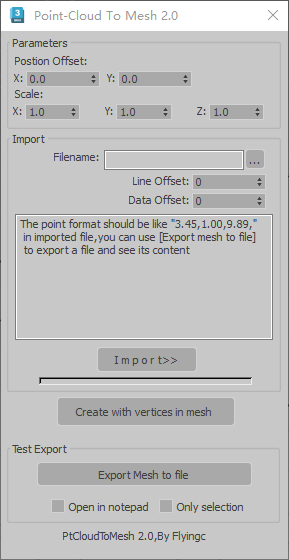

PCloudToMeshUI


Parameters:
In most cases ,these parameters can be ignored ,they just are useful only when imported points are too far away from origin or improper unit system is used ,because it can cause numeric accuracy problems.

  1. Position offset: Move points closer to origin.

  2. Scale:Scale coordinates of imported points,make them between a proper range,such as 100000.0 to 100.0. Too large value can cause unexpected error.


Import:

  1. Filename:select a text file which contains points data.

  2.  line Offset: The line that coordinates data offsets .Sometimes the first one or more lines may be unuseful.

  3. Data offset:The position of x coordinate in each line.Generally first value is used to store index data.



Tips

Note That
