SweepEdge

Introduce

With SweepEdge ,you can use a border(made up with edges that has 1 face) as an underlying path along which to extrude a cross-section .Paths can also contain splines or NURBS curves.The initial main purpose of SweepEdges is to create big amount of curbstones and sideways,then it was added many new features.
Because it is designed for terrain modeling ,so the cross-section will always be up-right to avoid getting a twist result.

The main features of SweepEdge as below:

  1. Create big amount of curbstones and sideways;

  2. Create new faces by offset a border;

  3. Create Stairs along mulitiple paths;

  4. Sweep with your own cross-Section,which can be stored for later use.


How To

  1. Curb:Used to create curbstone,the cross-section is an open rectangle ,you also can create curbstone with side-way,grass ground,or offset a path to create a polygon strip.

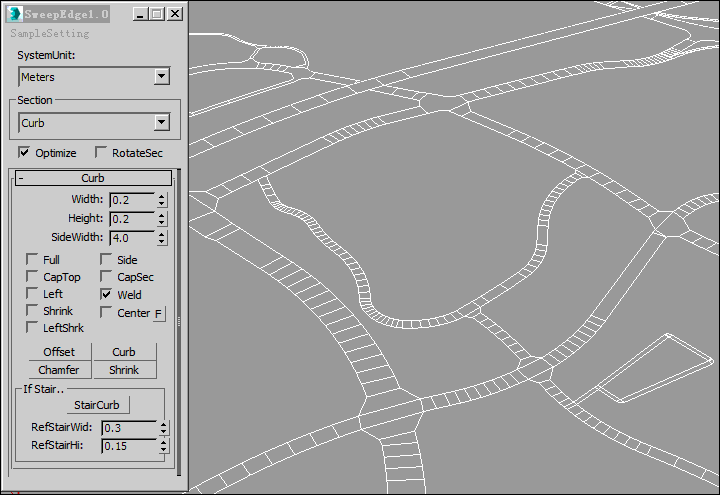

    Creat curbs of the road

  2. Stair:Clone a step Repeatedly as cross-section ,sweep along a path to create stair.

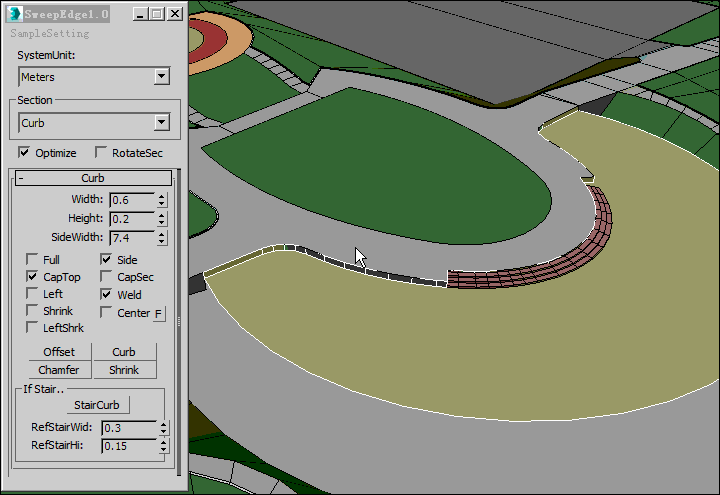

    Create Stairs

  3. Custom:Use yourself pre-made cross-section to sweep ,you can draw any spline for your cross-section and store it for reusing later ,the procedure can also multiplly clone cross-section to form a new cross-section.

    1. Create belts for the road

    2. Store Section

    3. Use customized sections,Right-click on "Pick Section" button to pop up the section library window

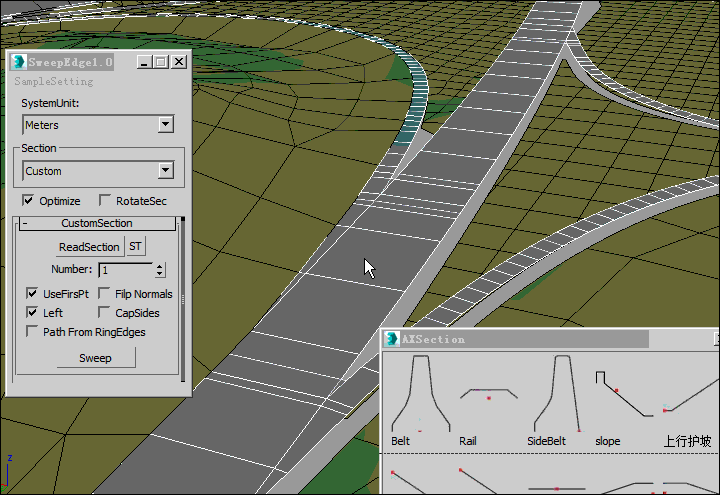

    Create belts for the road


Parameters

Tips

Note That
